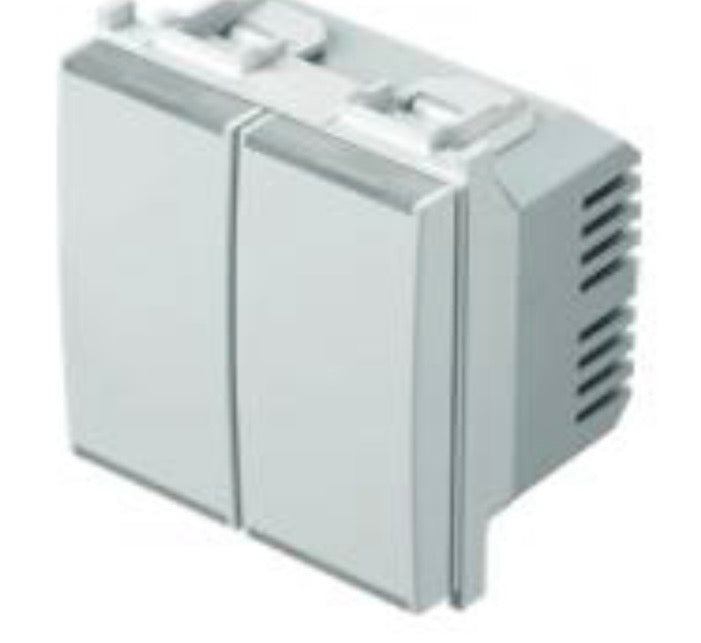

TEM 4-Channel Control Unit max 30VDC 50mA (EM8B)

The TEM Module 4-Channel Control Unit max 30VDC 50mA (EM8B) is an intelligent 4-channel control unit for KNX interfaces and DC systems.

• Rated voltage: 5-30 VDC
• Maximum operating current: 50 mA
• 4 independent outputs 5-30 VDC (max. 50 mA)
• 4 independent inputs 5-30 VDC (max. 20 mA) for LED display
• Illumination color: white
• Screwless terminals: 30-16 AWG (0.05-1.31 mm²)
• Button type: Microswitch
• Operating temperature: -5 to 40°C
• Maximum humidity: 90% (non-condensing)
• For indoor use only

Technical Data: 5-30 VDC | max. 50mA | Size: 2M

⚠️ Installation only by an authorized electrician. Frame sold separately. Other colors available upon request.
